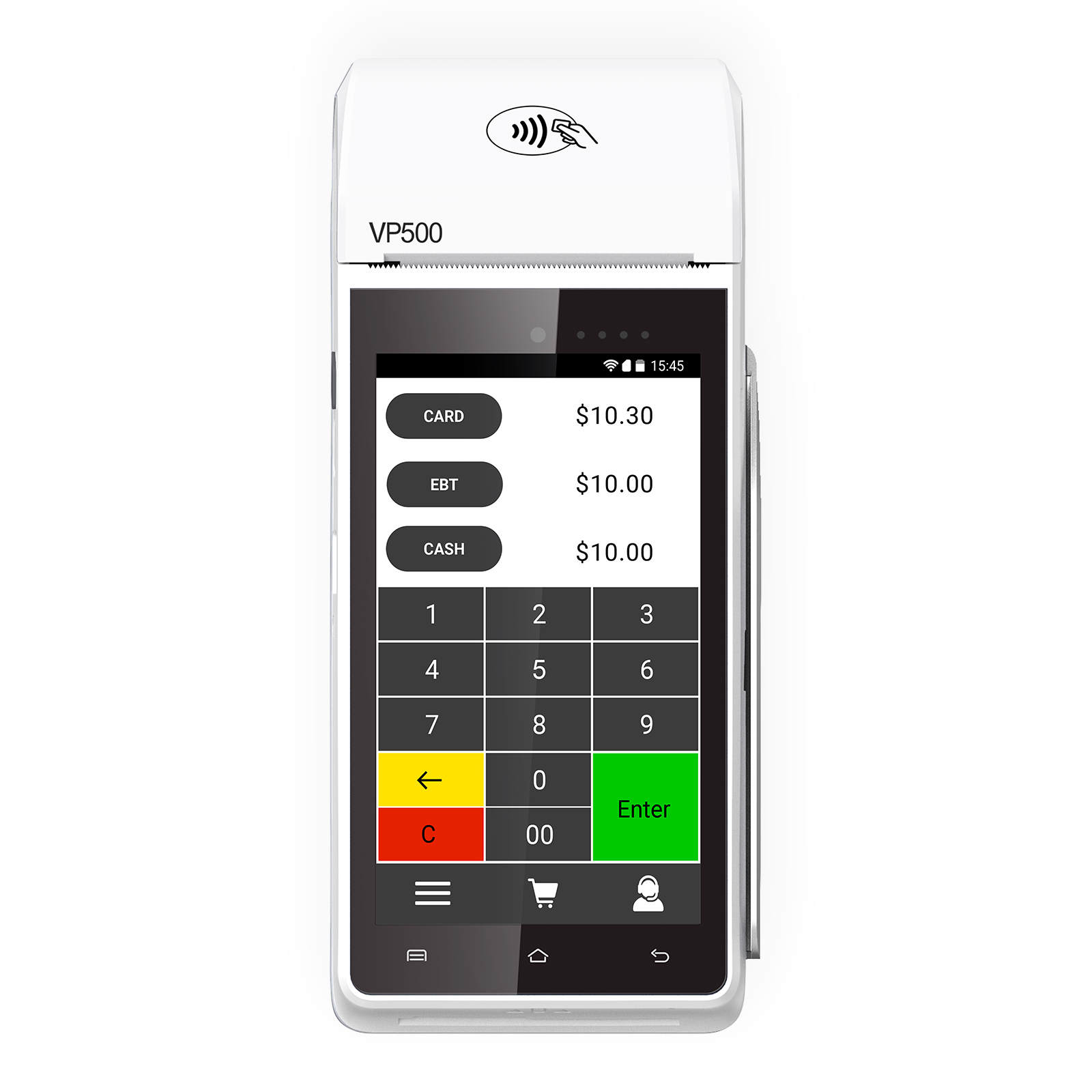

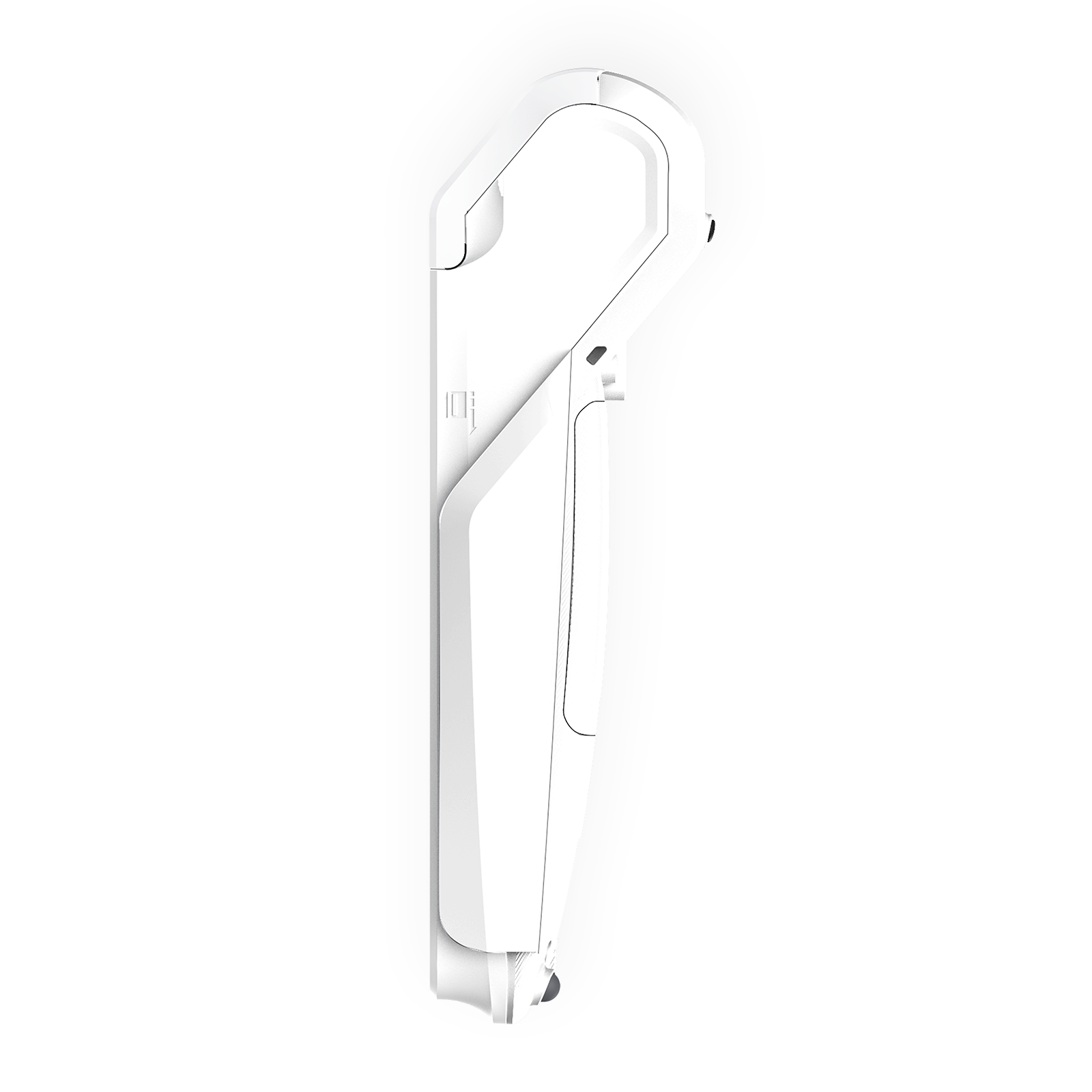

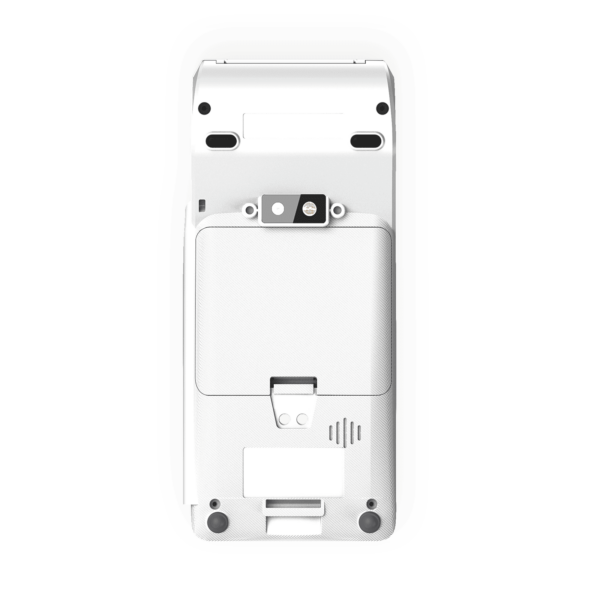

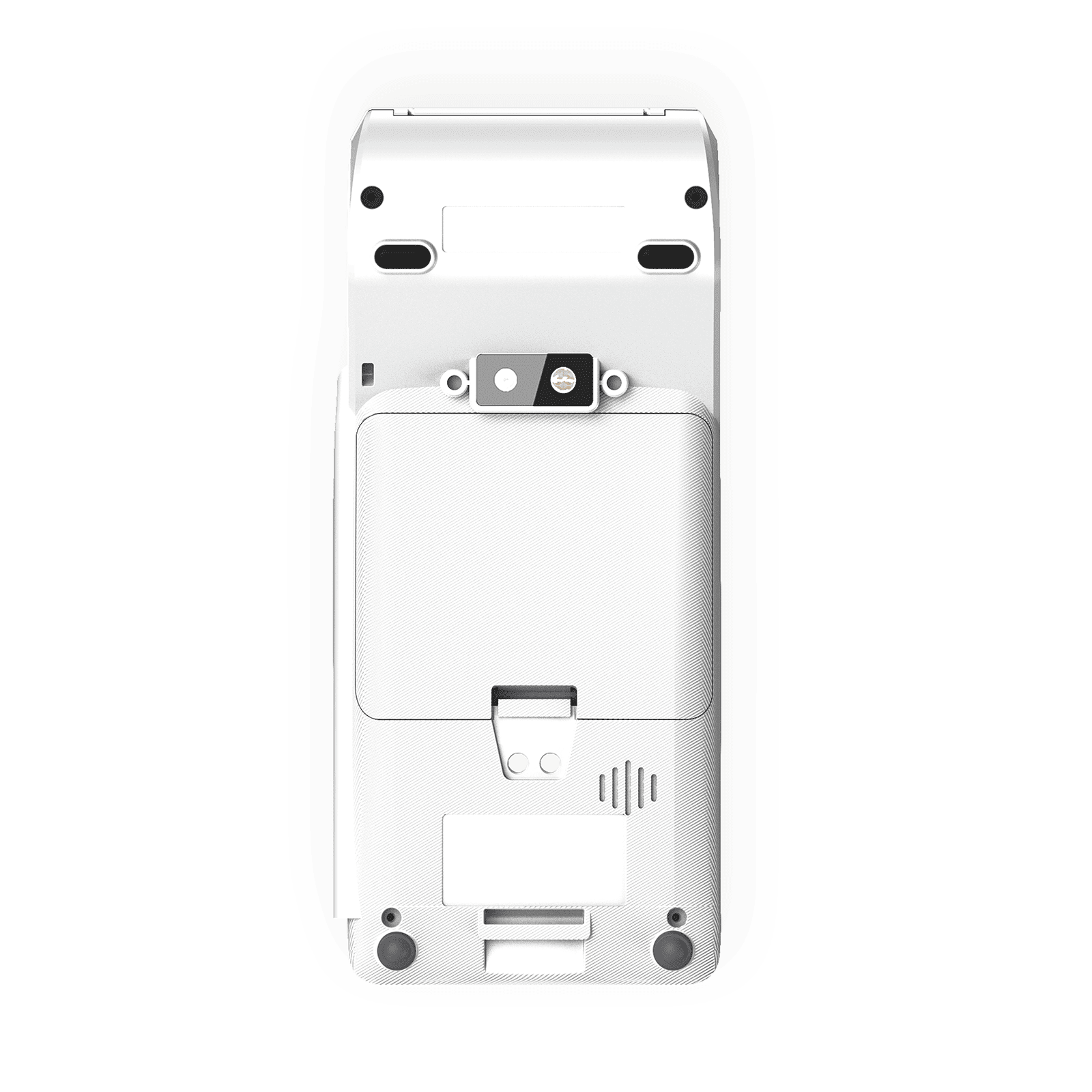

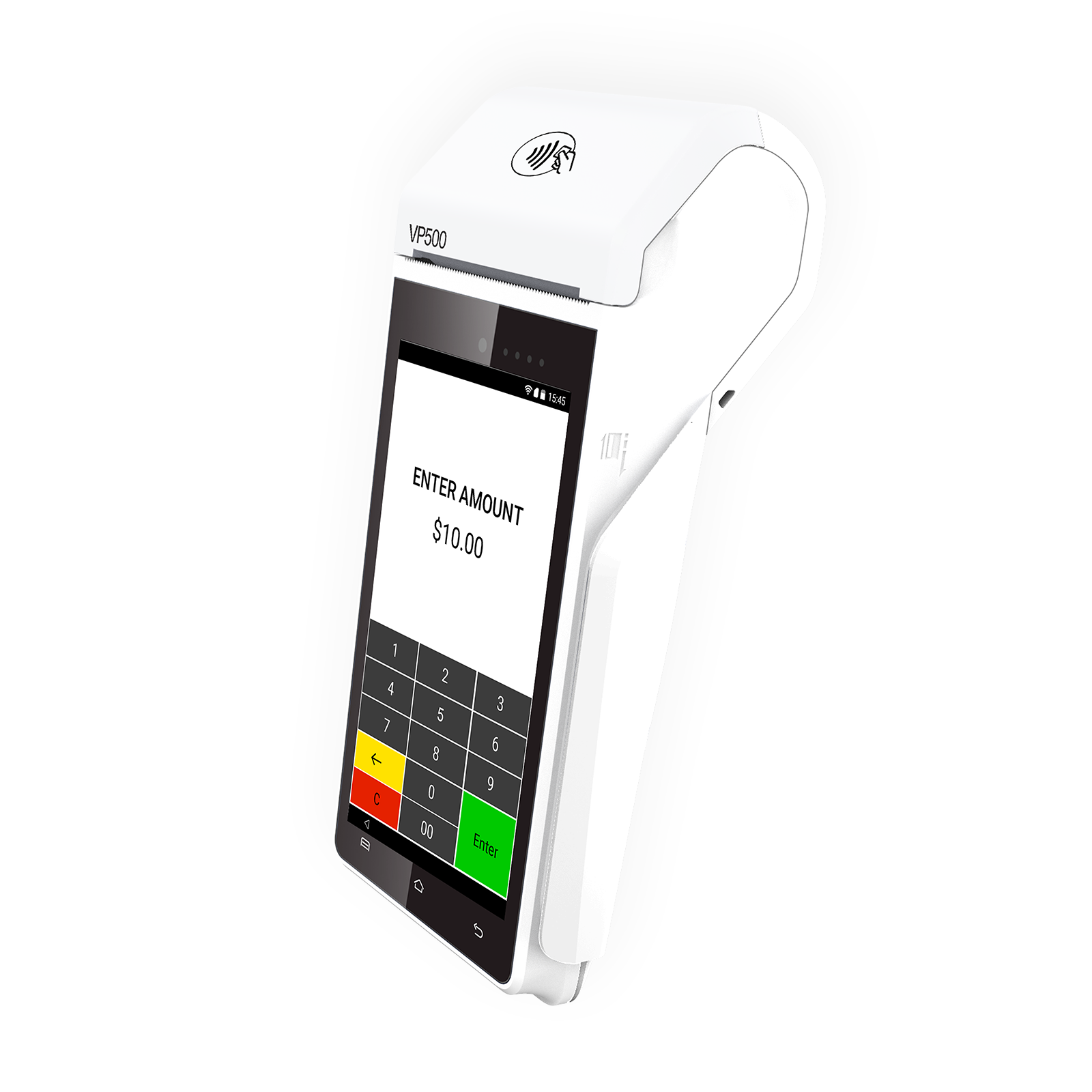

Valor VP500

  • 5.5″ touchscreen display
  • Cash Discounting, Dual Pricing, Surcharging
  • 4G LTE, 3G, GPRS & wireless connectivity
  • Auto-Connection failback procedure
  • Dual MID supported technology
  • Automatic software updates
  • Menu & inventory management
  • Business app marketplace
  • Digital signature capture with SMS & email receipt options
  • Pay-at-the-table, bill splitting & tip adjustment
  • EMV contact & contactless
  • Dual MID cash discounting and Interchange+
Tags
Description
The VP500 taps into all the advantages Android has to offer, bringing familiar smartphone-like capabilities that enhance the customer experience and empower merchants to modernize and grow their businesses.
Processor Cortex Quad-core A53, 1.4GHz
Security Processor ARMv7-M security core, 192MHz
Operating System Android 7.1.2
Memory Flash/RAM 8GB/1GB
Micro-SD Socket (Up to 32 GB)


Display

5-inch TFT full color LCD display, resolution of 1280 x 720, capacitive multi-touch screen, support electronic signature
Magnetic Card Reader Triple track, bi-directional, conforming to ISO 7810/7811/7813
Smart Card Reader EMV L1/L2, conforming to ISO 7816, 1.8V/3V/ 5V, synchronous & asynchronous, T=0 & T=1
Contactless Card Reader EMV Contactless L1, conforming to ISO 14443 Type A/B, Mifare , Felica
Positioning GPS, GLONASS, BEIDOU
Wireless Communication 4G / 3G / 2G | WIFI (802.11 b/g/n) | Bluetooth 2.1/4.2
Audio 1 x speaker, 1 x microphone, support audio recording and media play
Keypad Secure virtual keypad for PIN entry, 1 x power button, 1 x function key


Printer

High-speed thermal printer, 80 mm/s Paper roll diameter: 40mm Paper width: 58mm
Camera 0.3 MP front camera, support 1D/2D code payment

2 MP autofocus rear camera with flashlight, support 1D/2D code payment

Peripheral Ports 1 x Micro USB (OTG), 1 x DC Jack
Card Slots 2 x SIM, 1 x SAM, 1 x SD (1 x SIM, 2 x SAM, 1 x SD)
Battery Li-ion battery, 7.2V/2600mAh/18.7Wh (Equal to 3.6V/5200mAh)
Power supply Input: 100-240V AC 50/60Hz, 0.3A Output: 5.0V DC, 2.0A
Dimensions (mm) 190(L) x 81(W) x 54.9(H)
WL-HUB RS232 (RJ11), 2 x USB-A, Ethernet (RJ45)
Weight 440g including battery


Environment

Operating Temperature 0°C~40°C (32°F~104°F)
Storage Temperature -20°C~60°C (-4°F~104°F)
Relative Humidity 5%~93% (Non-condensing)


Docking Station

Charging base
Multi-function base: Charging, Ethernet, Bluetooth, Wi-Fi access point, 1 x USB-A, 1 x RS232


Certifications

PCI PTS 6.x, EMV L1/L2, EMV Contactless L1, PayPass, payWave, American ExpressPay,

Discover D-PAS, UnionPay QuickPass, JCB, TQM, CE, RoHS
