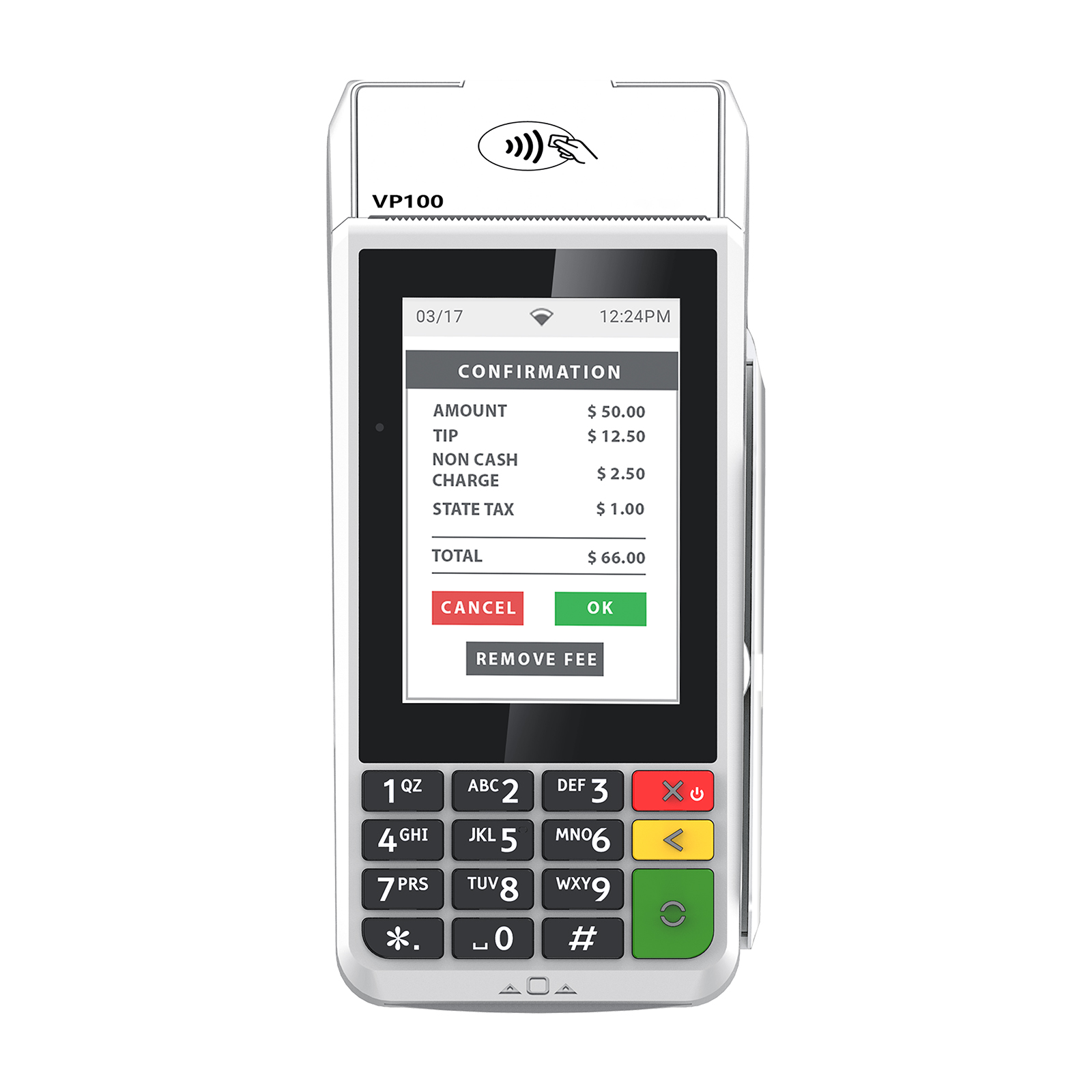

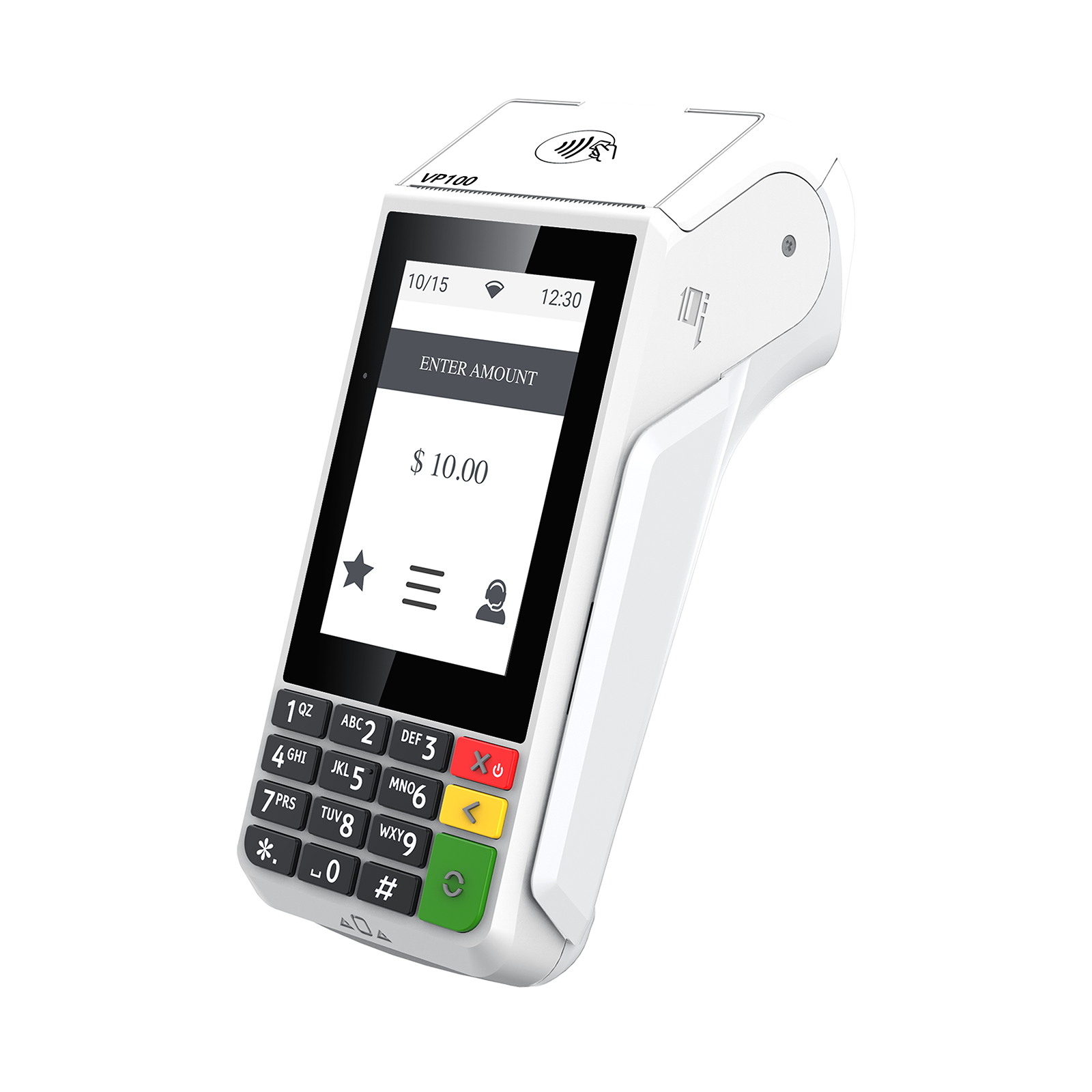

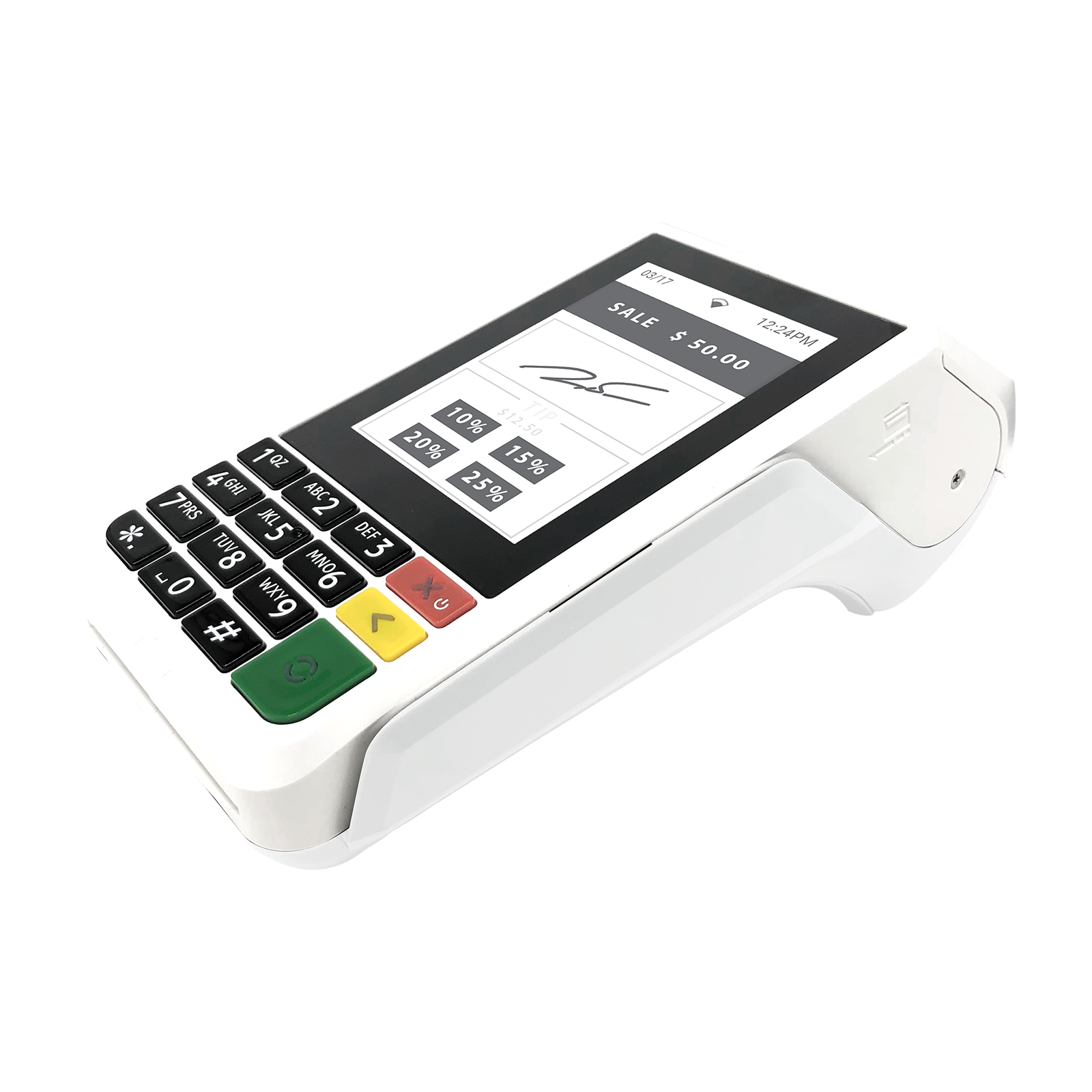

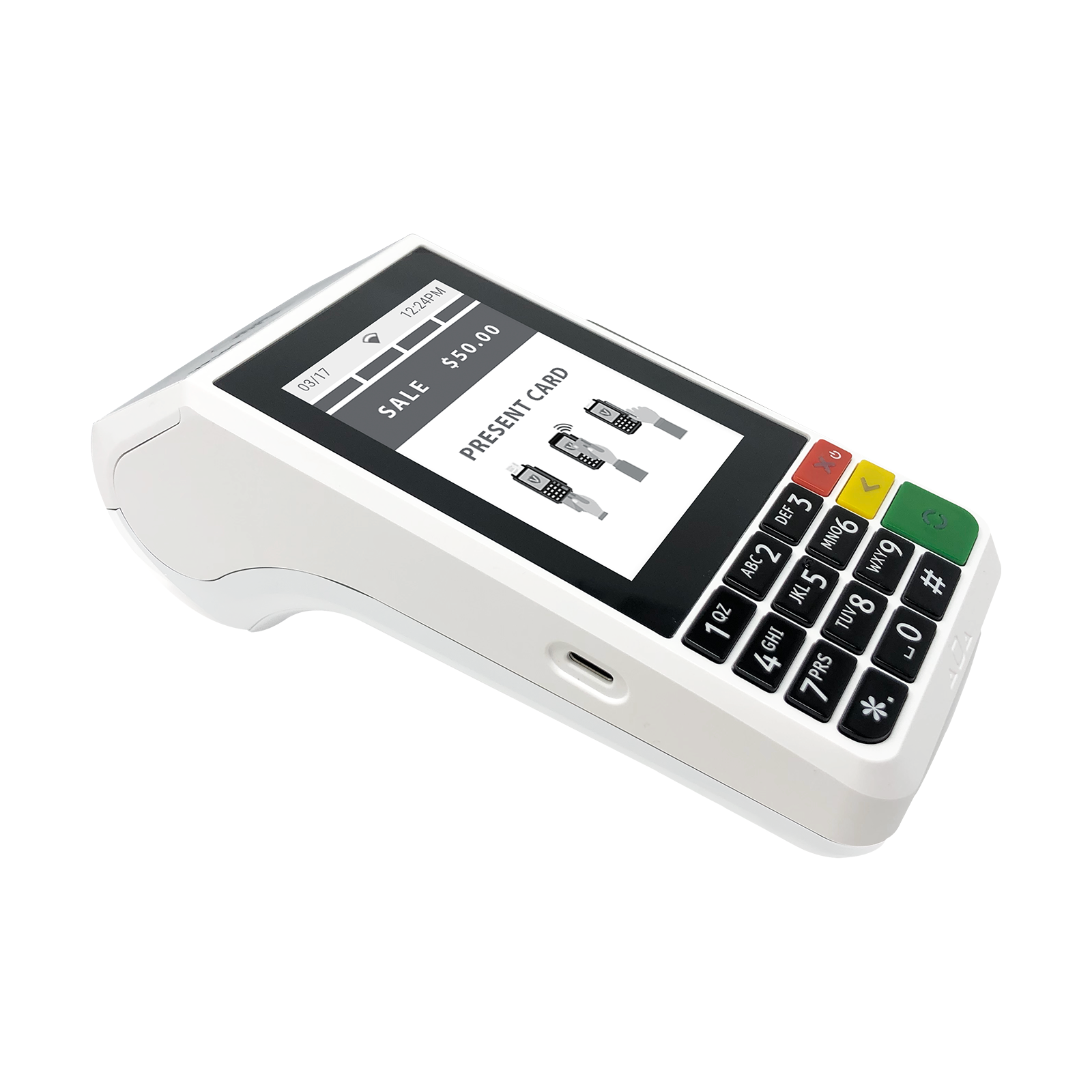

Valor VP100

  • Large scale 3.5” touchscreen display
  • Dual MID supported technology
  • Cash Discounting, Dual Pricing, Surcharging
  • Ethernet and Wi-Fi connectivity
  • Auto-Connection failback procedure
  • Digital signature capture with SMS & email receipt options
  • Automatic software updates
  • EBT enabled
  • SMS & email marketing with Engage My Customer™
  • Full transaction information display
  • Bill splitting
  • Built-in customer feedback rating system
Tags
Description
Experience the future of payments with VP100, the innovative countertop solution featuring a user-friendly display and cutting-edge features.

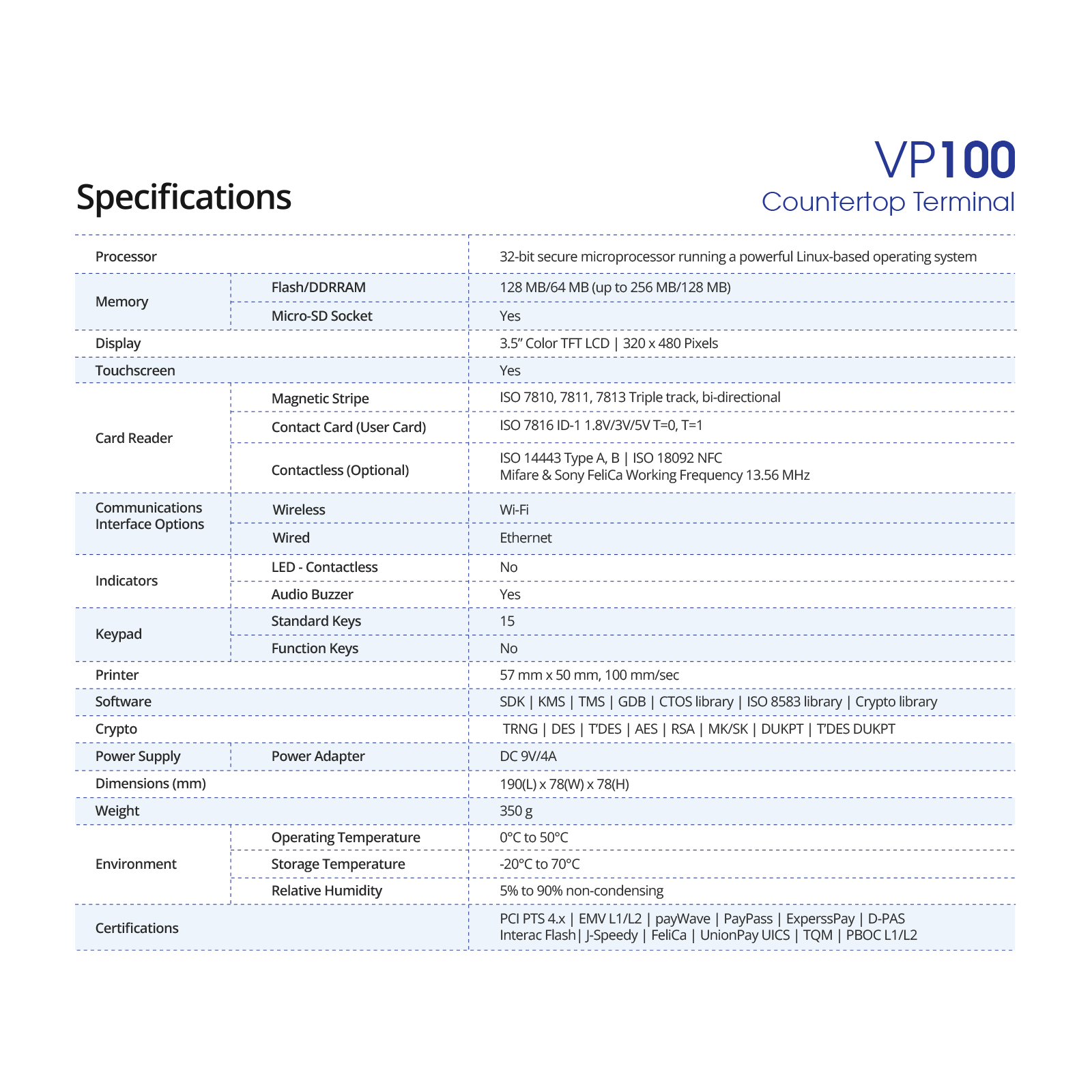

Processor 32-bit secure microprocessor running a powerful Linux-based operating system


Memory

Flash/DDRRAM 128 MB/64 MB (up to 256 MB/128 MB)
Micro-SD Socket Yes
Display 3.5” Color TFT LCD | 320 x 480 Pixels
Touchscreen Yes




Card Reader

Magnetic Stripe ISO 7810, 7811, 7813 Triple track, bi-directional
Contact Card (User Card) ISO 7816 ID-1 1.8V/3V/5V T=0, T=1


Contactless (Optional)

ISO 14443 Type A, B | ISO 18092 NFC

Mifare & Sony FeliCa Working Frequency 13.56 MHz

Communications Interface Options Wireless Wi-Fi
Wired Ethernet
Indicators LED – Contactless No
Audio Buzzer Yes


Keypad

Standard Keys 15
Function Keys No
Printer 57 mm x 50 mm, 100 mm/sec
Software SDK | KMS | TMS | GDB | CTOS library | ISO 8583 library | Crypto library
Crypto TRNG | DES | T’DES | AES | RSA | MK/SK | DUKPT | T’DES DUKPT
Power Supply Power Adapter DC 9V/4A
Dimensions (mm) 190(L) x 78(W) x 78(H)
Weight 350 g




Environment

Operating Temperature 0°C to 50°C
Storage Temperature -20°C to 70°C
Relative Humidity 5% to 90% non-condensing
Certifications PCI PTS 4.x | EMV L1/L2 | payWave | PayPass | ExperssPay | D-PAS Interac Flash| J-Speedy | FeliCa | UnionPay UICS | TQM | PBOC L1/L2
