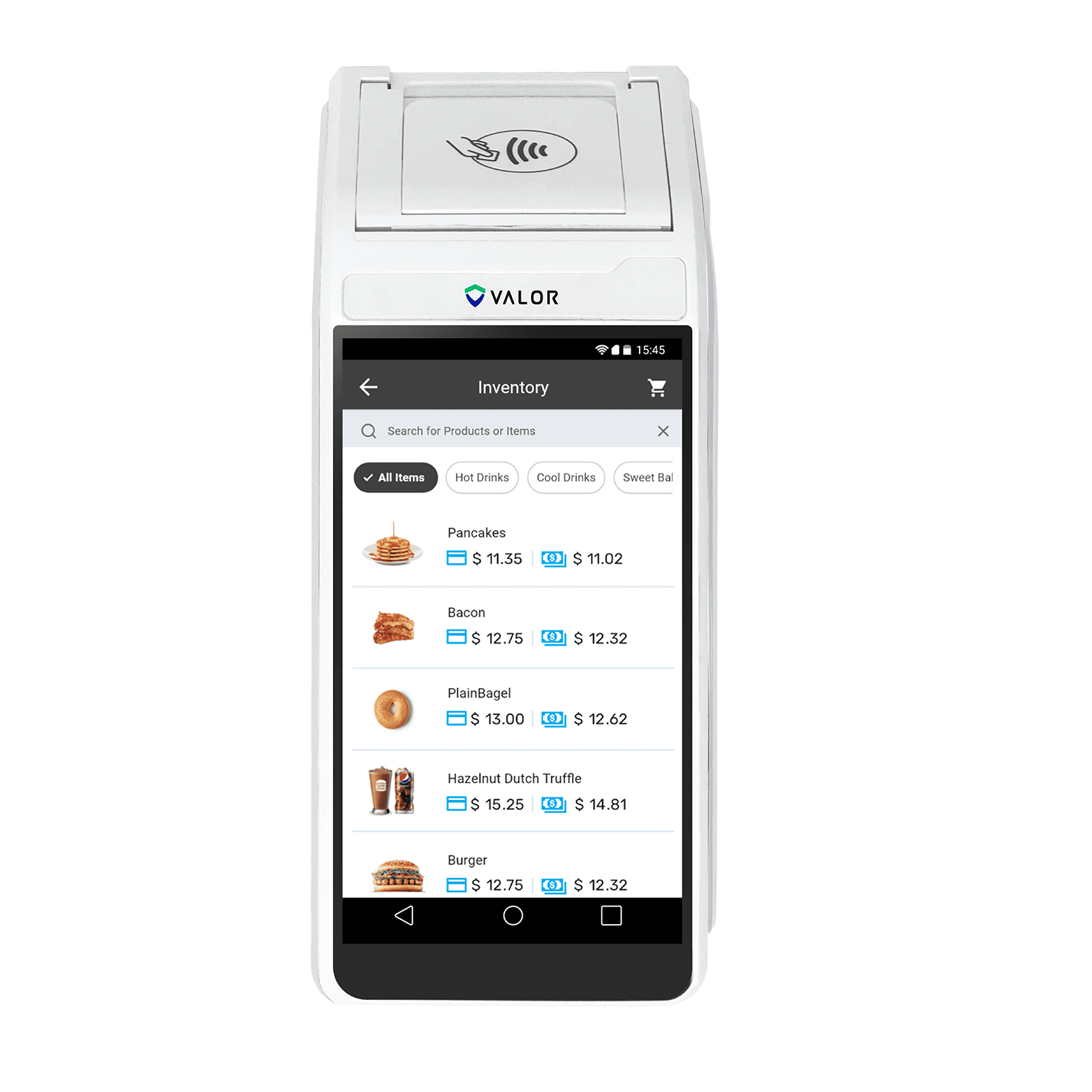

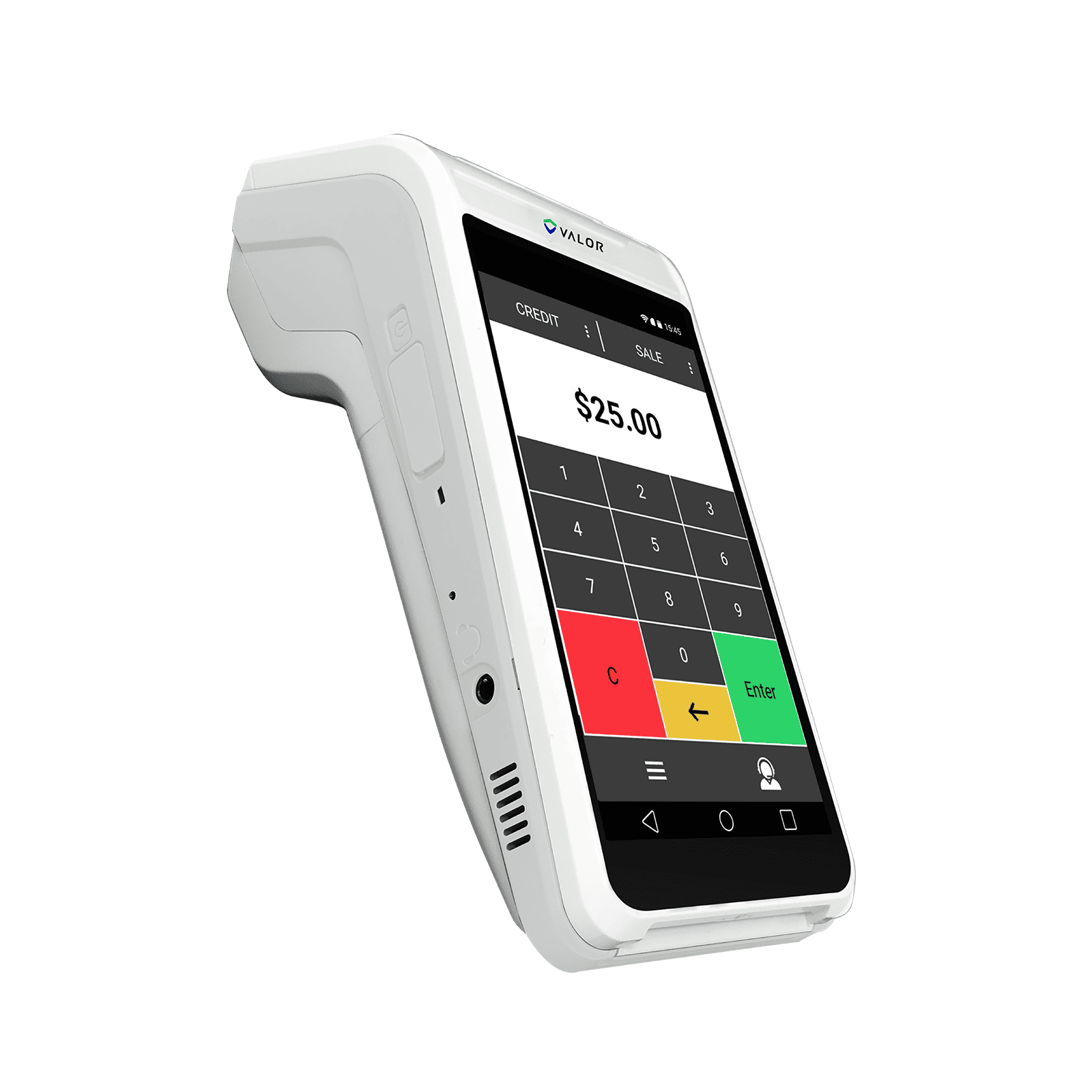

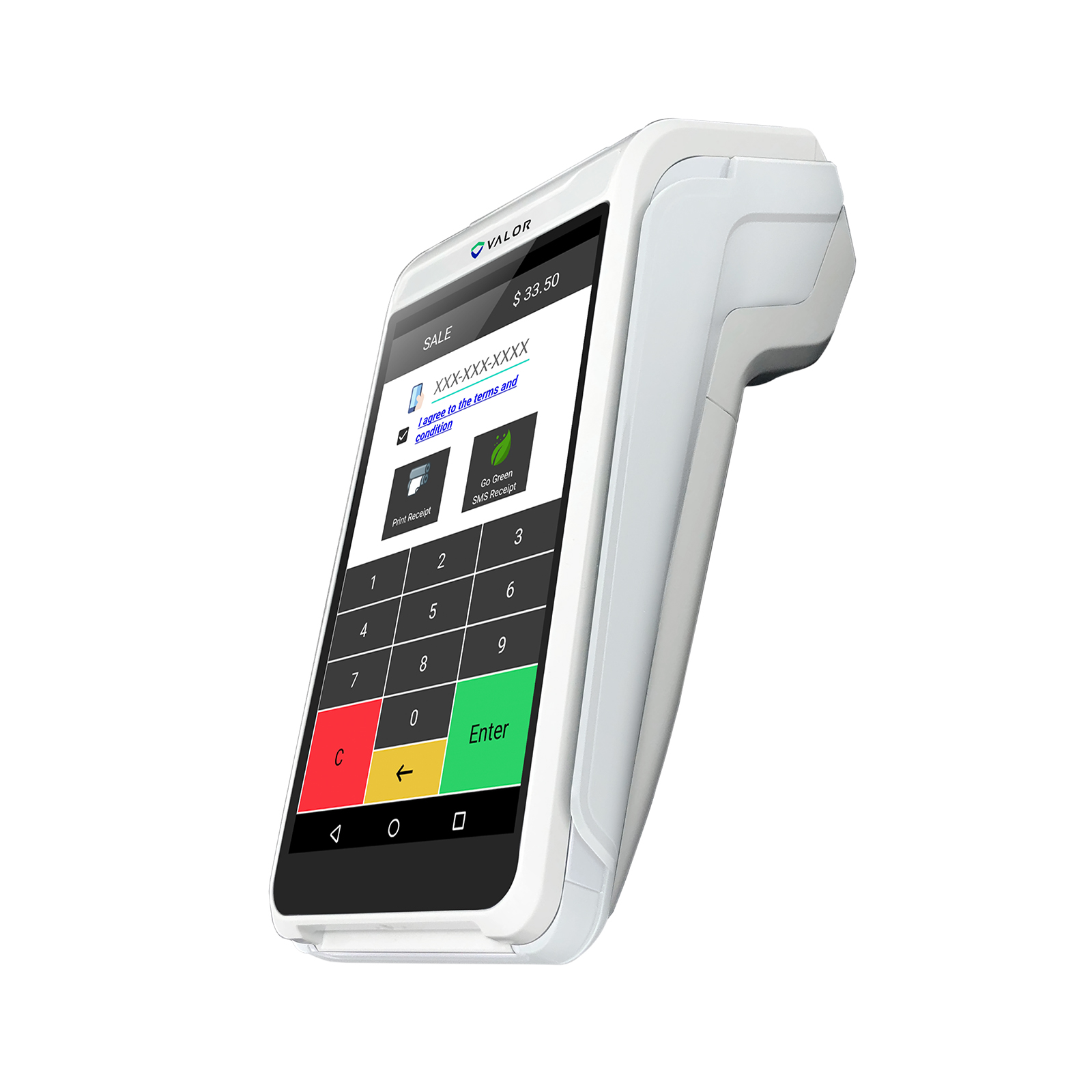

Valor VL500

Categories: , ,

  • 5.5″ touchscreen display
  • Cash Discounting, Dual Pricing, Surcharging
  • 4G LTE, 3G, GPRS & wireless connectivity
  • Auto-Connection failback procedure
  • Dual MID supported technology
  • Automatic software updates
  • Menu & inventory management
  • Business app marketplace
  • Digital signature capture with SMS & email receipt options
  • Pay-at-the-table
  • Full transaction information display
  • EMV & contactless payments
  • Bill splitting
  • Tip adjustment
Tags
Description
Embrace innovation and expansion with the VL500, a cutting-edge, visionary payment solution poised for enterprises shaping the future.
Processor High Speed Quad-Core 32-bit Processor plus Secure MCU
Operating System Android 7.1.2


Memory

 Flash/RAM 8GB/1GB
Micro-SD Socket Yes
Display 5.5” 1280 x720 Color TFT Capacitive Touch Display






Card Reader

 Magnetic Stripe ISO 7810, 7811, 7813 Triple track, bi-directional


Contact Card

 User Card ISO 7816 ID-1 1.8V/3V/5V T=0, T=1
SIM Card 2
Contactless ISO 14443 Type A, B | ISO 18092 NFC | Mifare and Sony FeliCa Working Frequency 13.56MHz
Communications Interface Options Wireless 4G LTE/3G/GPRS | WLAN | Bluetooth
GPS Yes
Indicators Audio Speaker and 4 Pole Audio Jack | Microphone
Keypad Virtual Keypad (Support PIN on Touch)
Printer 57mm x 40mm (Paper Roll Size), 100mm/sec (Print Speed)
Camera 5M Pixel AF with Flash Light Rear Camera
Software SDK | KMS | TMS|GDB | CTOS library ISO 8583 library | Crypto library
Crypto TRNG | DES|T’DES | AES | RSA | MK/SK | DUKPT


Power Supply

 DC 5V/2A
Battery 6000mAh/3.7V Li-ion Rechargeable Battery
Dimensions (mm) 200(L) x 78(W) x 56(H)
Weight 495 g




Environment

 Operating Temperature -10°C to 70°C
Storage Temperature -20°C to 70°C
Relative Humidity 5% to 90% non-condensing
Additional Features 2M Pixel FF Front Camera


Docking Station

 Charging base
Multi-function base: Charging, Ethernet, Wi-Fi access point, 1 x USB-A, 1 x RS232
Certifications PCI PTS 6.x | EMV L1/L2 | payWave | PayPass | ExperssPay | D-PAS Interac Flash | J-Speedy | FeliCa | UnionPay UICS | TQM | PBOC L1/L2
