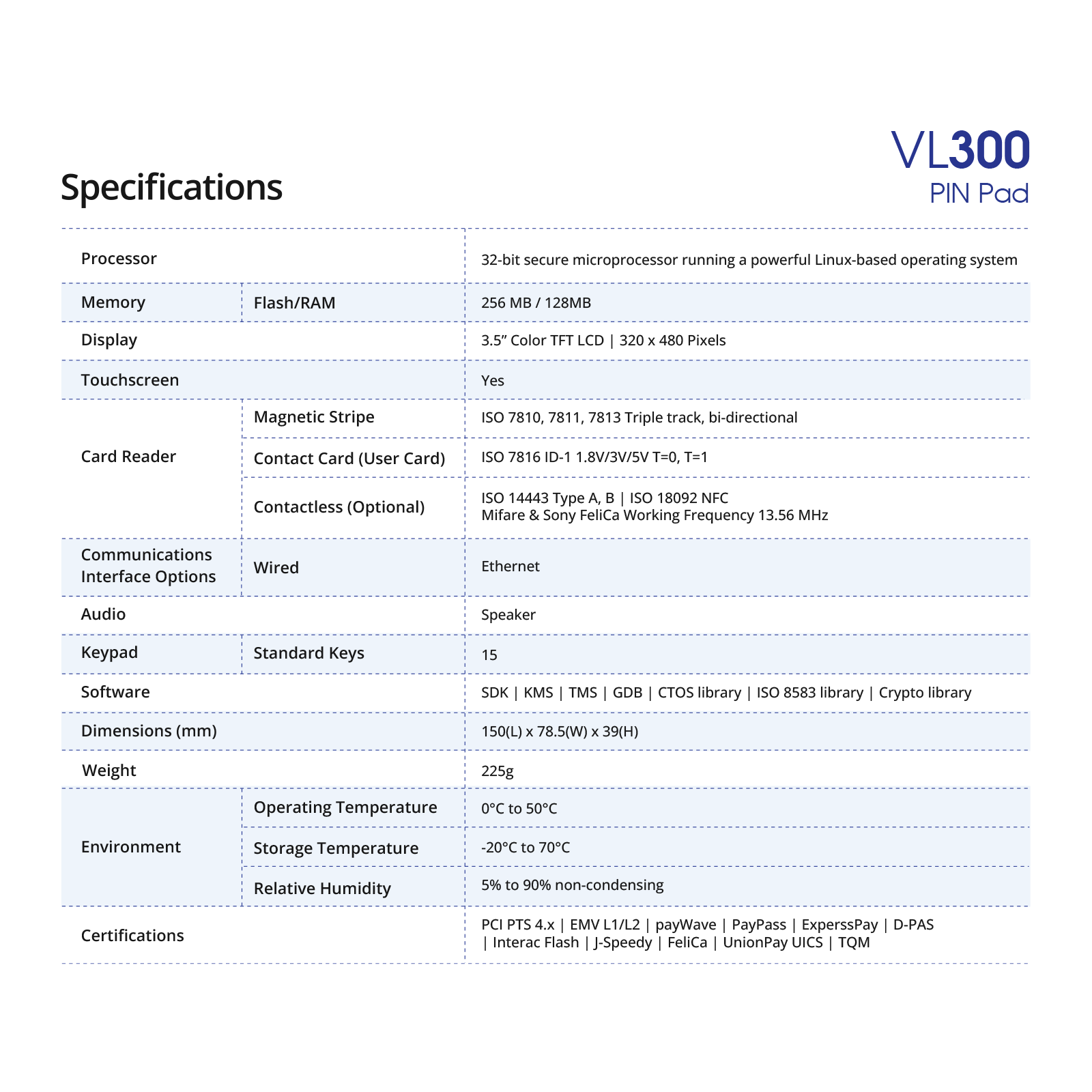

Processor |
32-bit secure microprocessor running a powerful Linux-based operating system |
|
Memory | Flash/RAM | 256 MB / 128MB |
Display | 3.5” Color TFT LCD | 320 x 480 Pixels | |
Touchscreen | Yes | |
Card Reader |
Magnetic Stripe | ISO 7810, 7811, 7813 Triple track, bi-directional |
Contact Card (User Card) | ISO 7816 ID-1 1.8V/3V/5V T=0, T=1 | |
Contactless (Optional) |
ISO 14443 Type A, B | ISO 18092 NFC
Mifare & Sony FeliCa Working Frequency 13.56 MHz |
|
Communications Interface Options |
Wired |
Ethernet |
Audio | Speaker | |
Keypad | Standard Keys | 15 |
Software | SDK | KMS | TMS | GDB | CTOS library | ISO 8583 library | Crypto library | |
Dimensions (mm) | 150(L) x 78.5(W) x 39(H) | |
Weight | 225g | |
Environment |
Operating Temperature | 0°C to 50°C |
Storage Temperature | -20°C to 70°C | |
Relative Humidity | 5% to 90% non-condensing | |
Certifications | PCI PTS 4.x | EMV L1/L2 | payWave | PayPass | ExperssPay | D-PAS
| Interac Flash | J-Speedy | FeliCa | UnionPay UICS | TQM |
